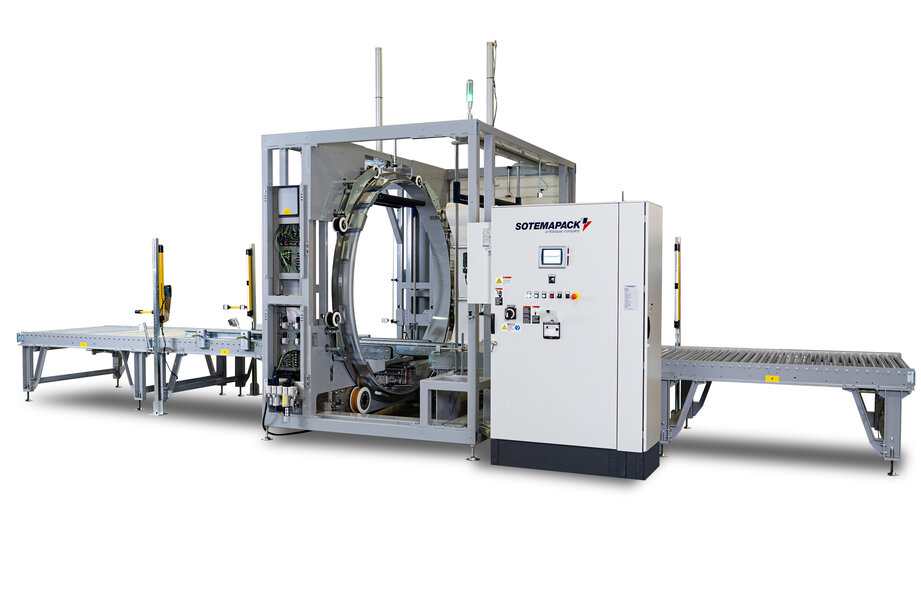

Spiror BW1400 Horizontal Rotary Ring Stretch Wrapper
Spiror BW1400 Horizontal Rotary Ring Stretch Wrapper
The Spiror BW1400 by Robopac is a high-performance horizontal rotary ring stretch wrapper designed for securing and protecting long or oddly shaped products with consistent and efficient film application. Whether you’re wrapping pipes, tubes, aluminum profiles, timber, or textiles, the BW1400 delivers optimal load containment with minimal film waste.
Key Features
- Rotary ring wrapping system for consistent tension and coverage
- 14″ (1400mm) ring diameter – ideal for medium to large products
- Touchscreen control panel with programmable wrapping cycles
- Adjustable film tension and overlap settings
- Fully automatic operation with optional manual mode
- Compact footprint for space-saving installations
Technical Specifications
| Specification | Details |
|---|---|
| Ring Diameter | 1400 mm (55 in) |
| Max Product Length | Unlimited |
| Film Roll Width | Up to 250 mm |
| Film Core Diameter | 76 mm (3 in) |
| Power Requirements | 230V / 3 Phase / 60Hz |
| Control Panel | PLC with HMI touchscreen |
Applications
The Spiror BW1400 is ideal for wrapping:
- Extruded plastic or aluminum profiles
- PVC and metal piping
- Wooden planks and panels
- Furniture components
- Fabric or carpet rolls
